Compact antenna tracker

Builds Custom Antenna Trackers
#1

I did not like the antenna tracker (cases) on thingiverse, so I remixed this one which can easily be mounted to the “cheapeveryonehasitalready - Tripod”:

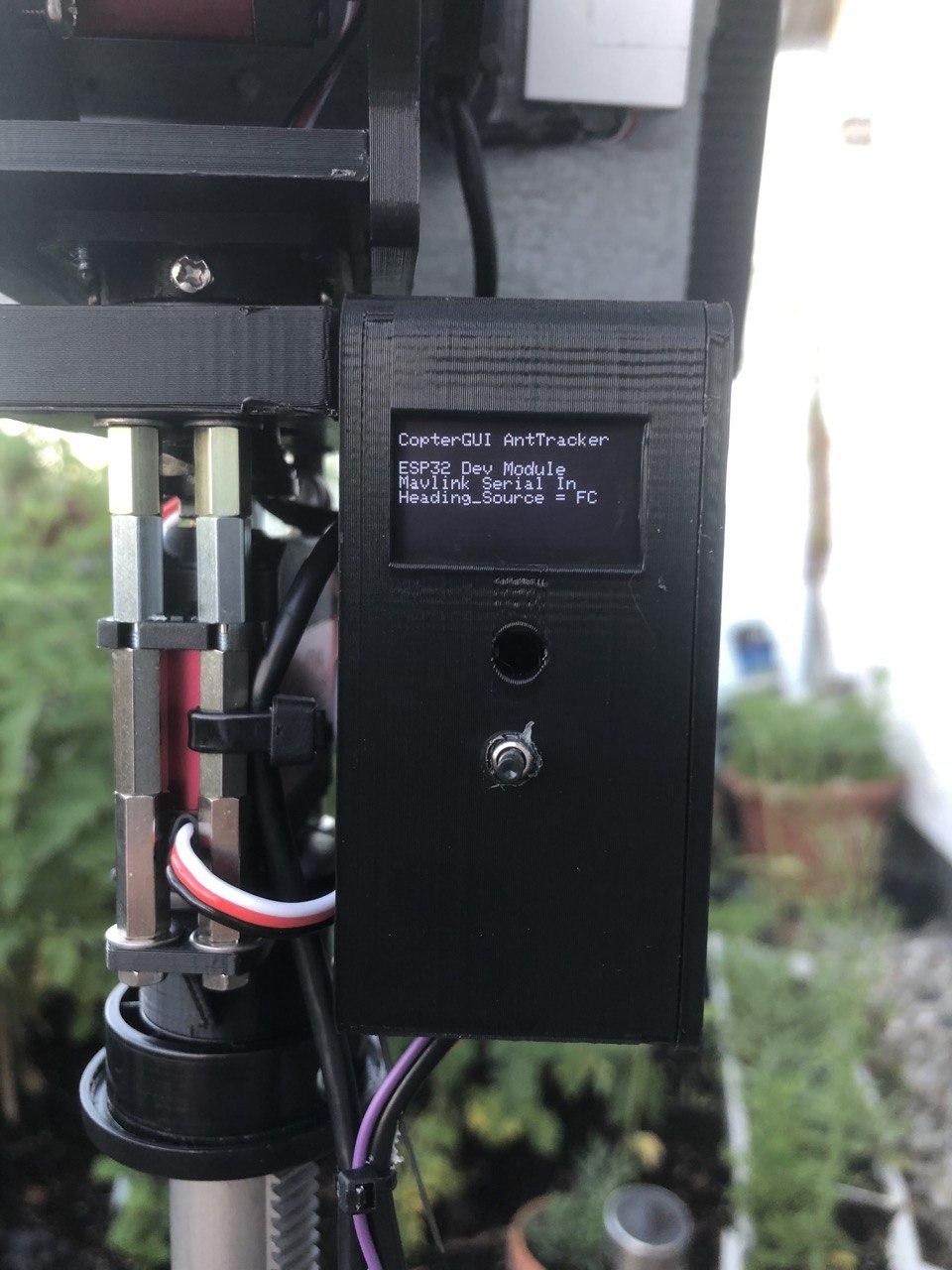

photo_2020-07-04_09-07-16
photo_2020-07-04_09-07-16960×1280 264 KB

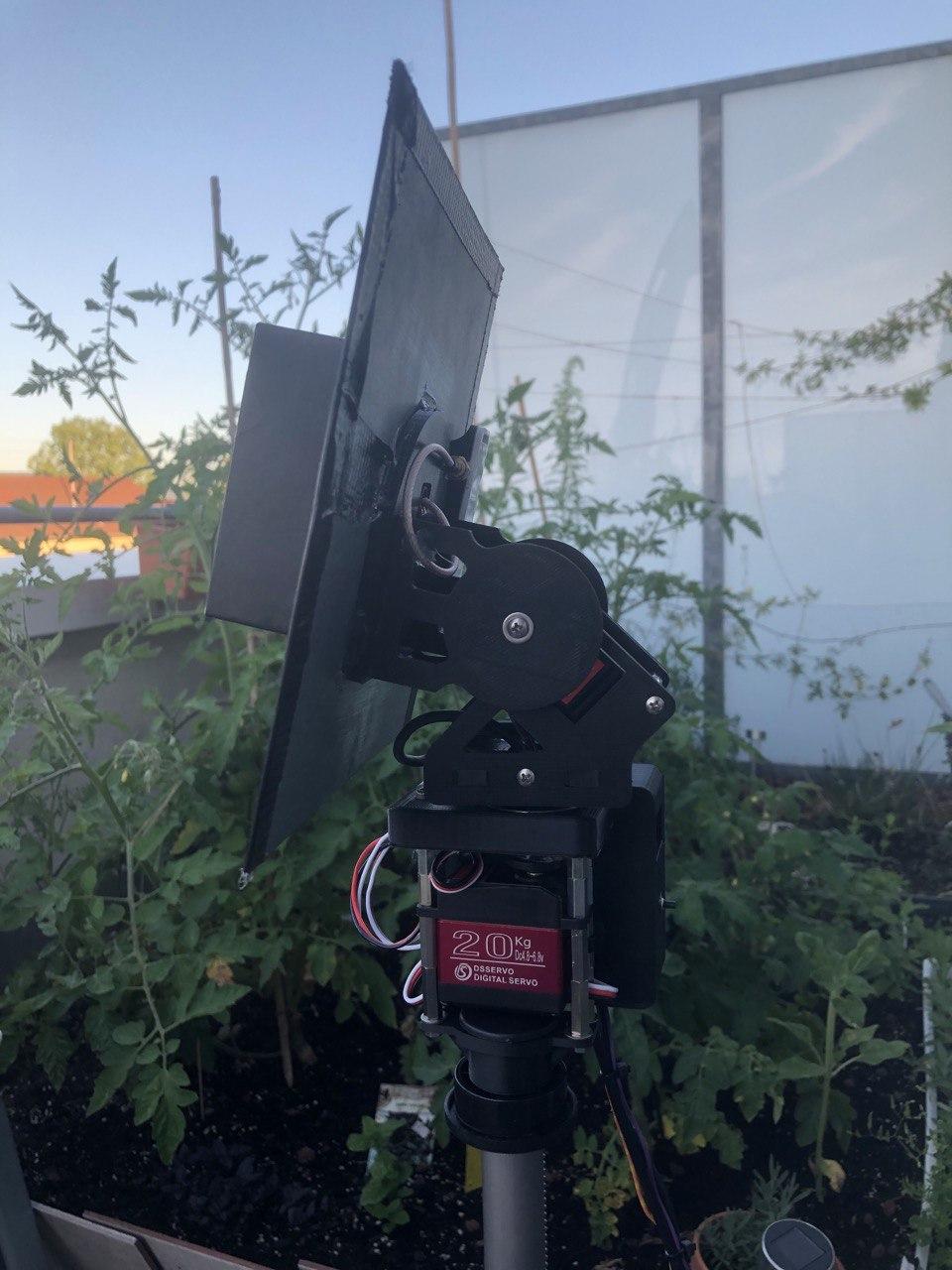

photo_2020-07-04_09-07-32
photo_2020-07-04_09-07-32960×1280 196 KB

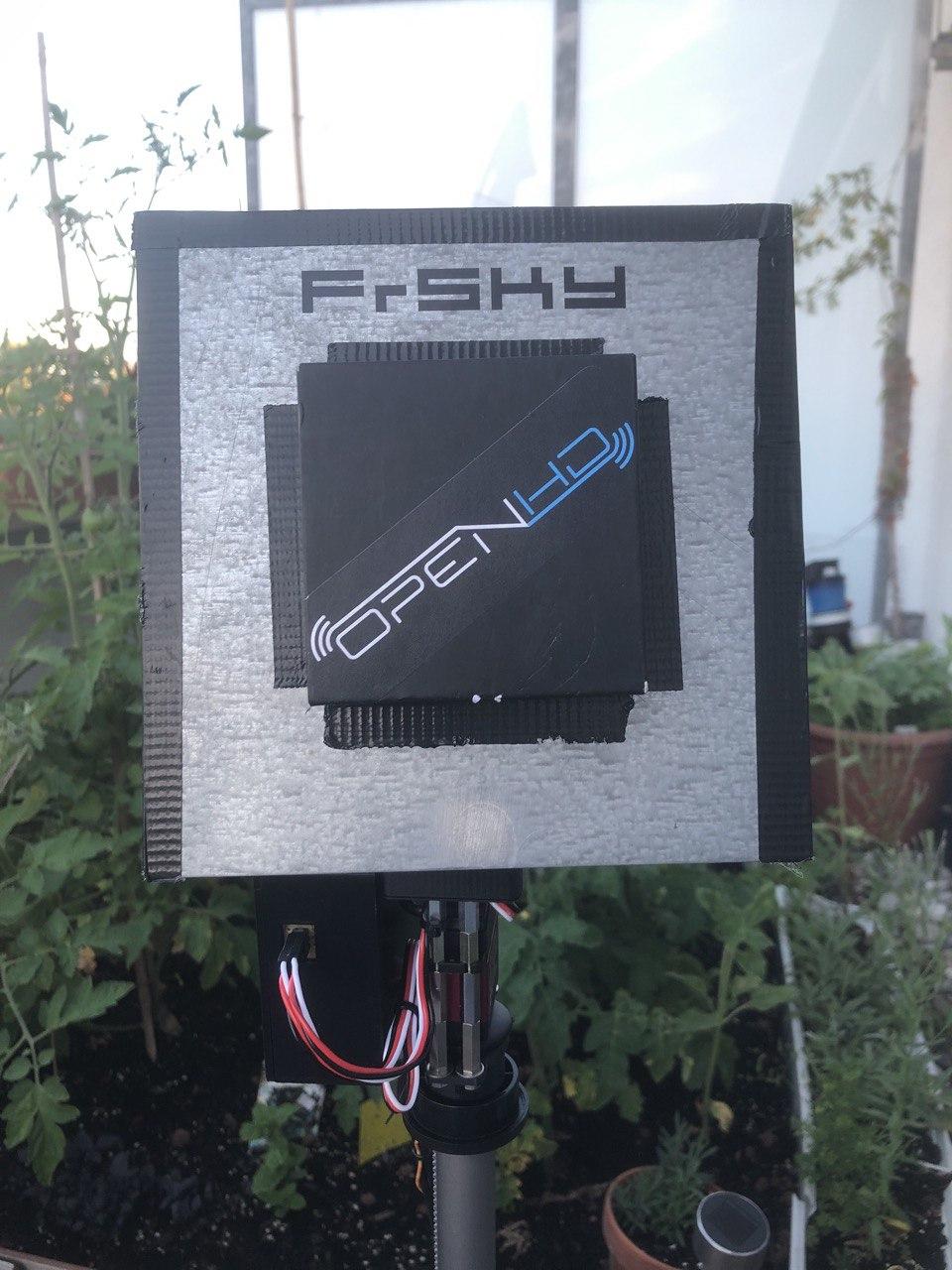

photo_2020-07-04_09-07-37
photo_2020-07-04_09-07-37960×1280 147 KB
photo_2020-07-04_09-07-41
photo_2020-07-04_09-07-41960×1280 128 KB
photo_2020-07-04_09-07-44
photo_2020-07-04_09-07-44960×1280 138 KB
photo_2020-07-04_09-07-48
photo_2020-07-04_09-07-48960×1280 129 KB
photo_2020-07-04_09-07-53
photo_2020-07-04_09-07-53960×1280 152 KB

all the files are available here:

Antenna Tracker Mechanics by SLOWY - Thingiverse

in extensiont to the printable parts you gonna need 2 ball bearings:

35x17x10
and
22x8x6

also 2 (MG996 - sized) 180* servos, M3 screws, washers and standoffs.

Do not use the servos from the pictures, I found various problems with them and gonna switch soon.

It uses this project for the electronics:

if you want to use this with a WiFi connection make sure to visit:

as dr0nemrc made some serious improvements to the FW.

Hope you like it :slight_smile:

3 Likes
#2

Nice, simple implementation! Heading data from copter’s gps/compass?
Happy how it’s working/tracking?

#3

Hi
Yes I get the GPS and heading from my flight controller before takeoff.
The first test where successful and it was tracking nice.
But during stress test I realized that sometimes my weird no-endstop servos turn the „wrong“ direction. So I’m gonna change to some more standard servos soon.
pan and tilt both have a „slip point“ so no damage to the mechanics happily :slight_smile:

1 Like
